144 Core Fiber Optic Singlemode Strand Cable GYTA53 for Direct Burial Use
Features

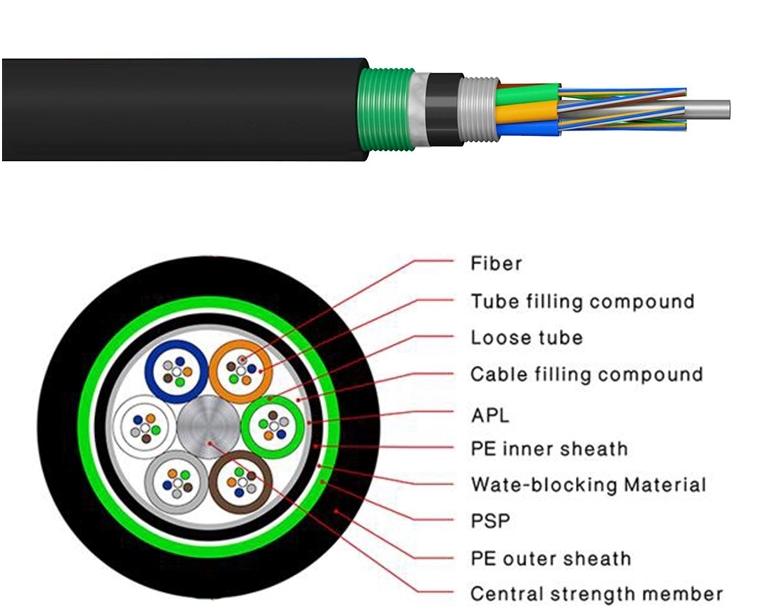

Double jacket and Corrugated steel tape armoring for water & rodent resistance, optimised impact and crush resistance
Application
- Suitable for outdoor duct and direct burial applications
- Ideal for environments where impact protection is required
- Long distance and local aera network communication
Technical Parameter
| Fiber Count | 144 |
| Tube No | 12 |
| Cable Diameter(mm) | 19.7 |
| Cable Weight(kg/km) | 365 |
| Tensile Resistance(N) | Long Term | 1000 |
| Short Term | 3000 |
| Crush Resistance(N/100m) | Long Term | 1000 |
| Short Term | 3000 |
Mini Bending
Radius(mm) | Dynamic | 25D |
| Static | 12.5D |
| Attenuation(dB/Km) | 1310nm | ≤0.36 |
| 1550nm | ≤0.22 |
Company Profile
Sichuan Yuantong Communication Co., Ltd is one of the leading manufacturer in the cables
and telecom accessories. We have more than 20 years experience in this line.
FAQ
Q1:How can i get your catalogue and price list?
A1:Please let us know your email or contactus from website directly for our catalogue and price list.
Q2:What if there is quality problem when we get the goods?
A2:If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you.
Q3:What is your terms of payment?
A3:T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance.
Q4:May I buy samples from you?
A4:Yes! You are welcome to place sample order to test our superior quality and services.
Q5:How about your delivery time?
A5:Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
